Take your ice fishing to new heights with the Garmin ECHOMAP UHD2 – a portable combo device paired with the Panoptix PS22-IF live sonar! This package, designed specifically for ice fishing, combines a chartplotter with advanced live sonar in a setup that’s easy to transport from hole to hole. Just connect, turn it on, and enjoy a real-time view showing fish, depth, and exact positioning in an instant.

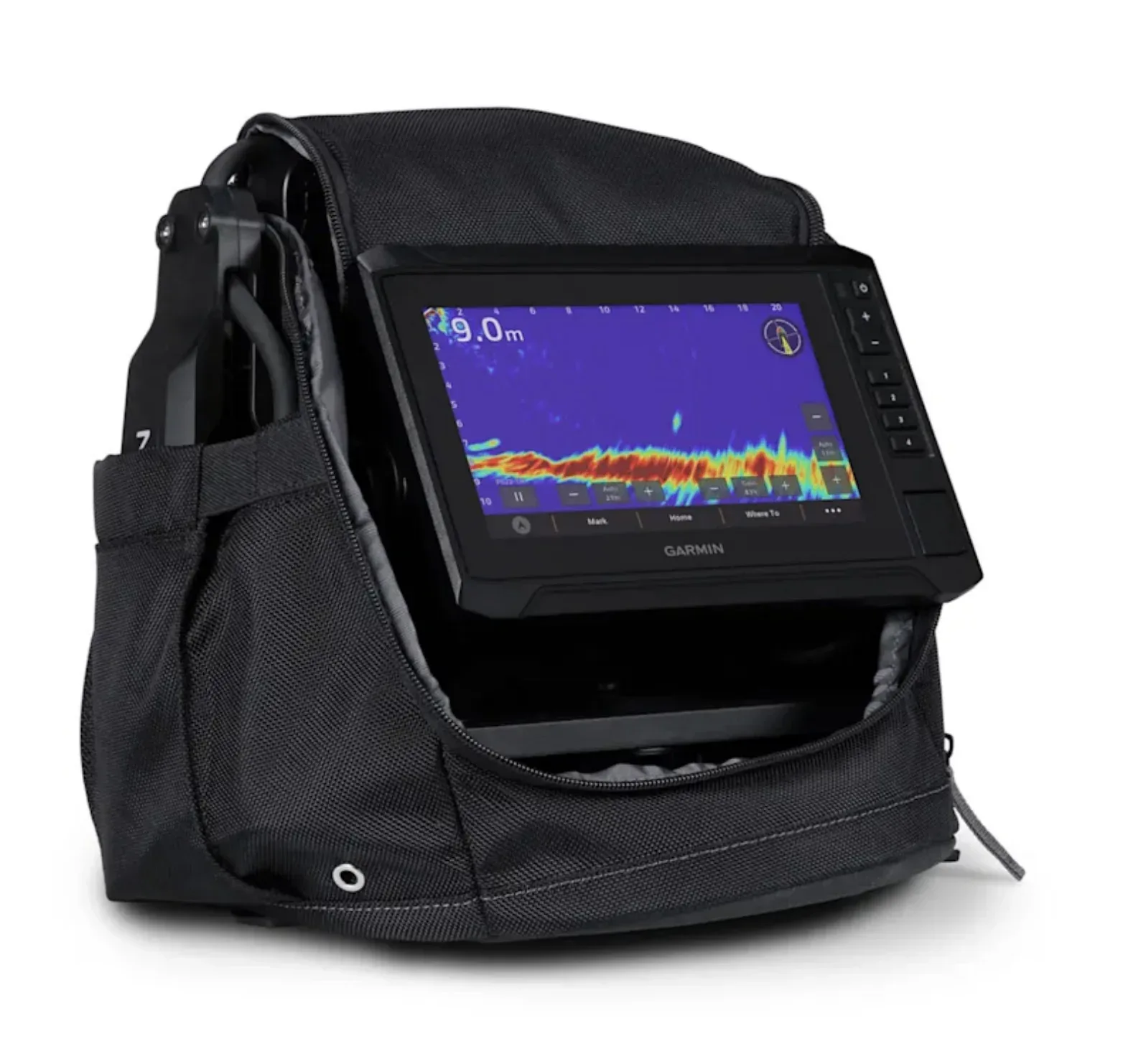

The package’s 7-inch ECHOMAP UHD2 touchscreen offers easy navigation and crystal-clear imaging, while the Panoptix PS22-IF displays two LiveVü™ modes: Forward and Down. These modes let you zero in on fish movement and know precisely when to strike. The smart, pole-free design lets you move quickly between holes to maximize your catch. Plus, it includes a convenient carrying case to hold the entire system, making it a breeze to move on to the next hole.

NOTE! This package does not include a battery or a charger.

Main Features:
• Two LiveVü™ Modes for Ice Fishing: Forward mode covers up to a 30-meter radius, showing fish schools around you, while Down mode gives a direct view straight down – ideal for watching fish react to your bait.
• Customizable ECHOMAP UHD2 7” Screen: The touchscreen with buttons is intuitive, and you can create custom screen layouts that combine sonar and map views.
• Panoptix PS22-IF Live Sonar: An ultra-lightweight sonar optimized for ice fishing with no need for a pole mount. The rotation system provides easy control of direction and depth, and you can switch between narrow and wide beams.
• Garmin Navionics+™ and Garmin Navionics Vision+™ Chart Support: Enhance the chartplotter’s accuracy with optional map updates like Auto Guidance+™.
• Quickdraw Contours™ Mapping: Create and save detailed depth maps in real time over areas up to 2 million acres!

Package Includes:
• ECHOMAP™ UHD2 7" Device
• Panoptix PS22-IF Live Sonar
• Rotation Device and Sonar Mount
• Removable Lens – allows easy switching between wide and narrow beams for focusing on target areas.
• Practical, durable carrying case with base and handle
• Foam Float and Power Cable
• Manuals

TECHNICAL SPECIFICATIONS

General
• Dimensions: 26.7 x 22.9 x 26.7 cm (10.5″ x 9.5″ x 10.5″)
• Weight: 5.5 kg (12.2 lbs)
• Water Resistance: IPX7
• Touchscreen and Buttons
• Screen Type: WVGA, TN
• Screen Size: 15.5 x 8.7 x 17.8 cm (6.1″ x 3.4″ x 7″)
• Screen Resolution: 800 x 480 pixels

Maps and Memory
• Memory Card Support: 1 microSD™ card; max size 32 GB
• Waypoints: 5,000
• Track Points: 50,000
• Tracks: 50 saved
• Routes: 100

Ice Fishing Data
• Battery Type, recommendation: SLA, 7Ah (not included)
• Case: Small
• Included Transducer: PS22-IF
• Transducer Holder: Pole-free rotation system

Sensors
• GPS
• GLONASS
• Galileo
• BeiDou
• Internal Receiver: 10 Hz
• NMEA 2000® Compatible
• WAAS Support
• Support for Multi-band and Multi-satellite GPS

Optional Map Support
• Garmin Navionics+™
• Garmin Navionics Vision+™
• TOPO 100K
• Standard Maps
• Garmin Quickdraw Contours

Chartplotter Features
• ActiveCaptain Compatible

Power Information
• Power Input: 9–18 Vdc

Sonar Features and Specifications
• Sonar Support: Yes
• Power: 500 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope: Yes

Connections
• NMEA 2000® Ports: Yes
• Garmin Marine Network™ Ports: 1
• 12-Pin Transducer Ports: 1
• Bluetooth Calling: Yes
• ANT+™ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes
